Northmann Industries (Pty) Ltd
S.205 Lower link implement pin dual 22 - 28x203mm, Thread size 7/8x57mm Cat. 1/2 (Ø22/28mm)
S.205 Lower link implement pin dual 22 - 28x203mm, Thread size 7/8x57mm Cat. 1/2 (Ø22/28mm)
Regular price
R 190.00 ZAR
(Excl VAT)
Regular price
Sale price
R 190.00 ZAR
Unit price
/
per
Couldn't load pickup availability
S.205

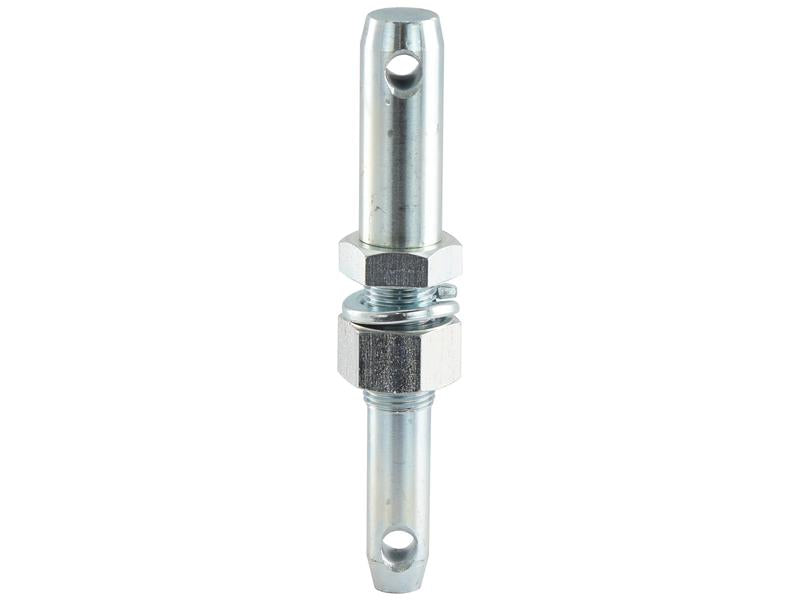

Lower link implement pin dual 22 - 28x203mm, Thread size 7/8x57mm Cat. 1/2 (Ø22/28mm).
Pin Ø: 22 - 28mm, Working length: 51 - 60mm, Overall length: 203mm, Thread size: 7/8 UNF, Thread length: 57mm, Hole Ø: 12mm

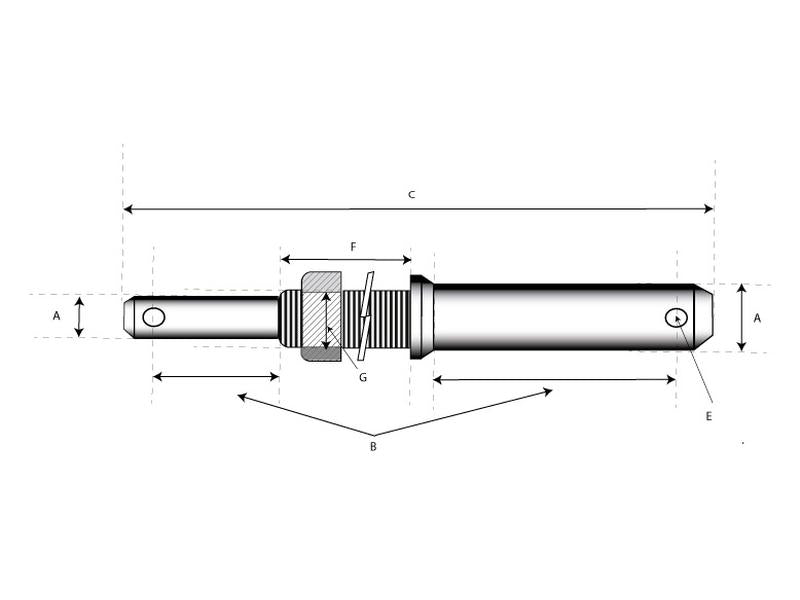

- (A) Pin Ø:22 - 28mm (7/8 - 1-1/8'')
- (B) Working length :51 - 60mm (2-1/32 - 2-3/8'')
- (C) Overall length:203mm (8)
- (E) Hole Ø :12mm (1/2'') /
- (F))Thread length:57mm
- (G) Thread size :7/8''
