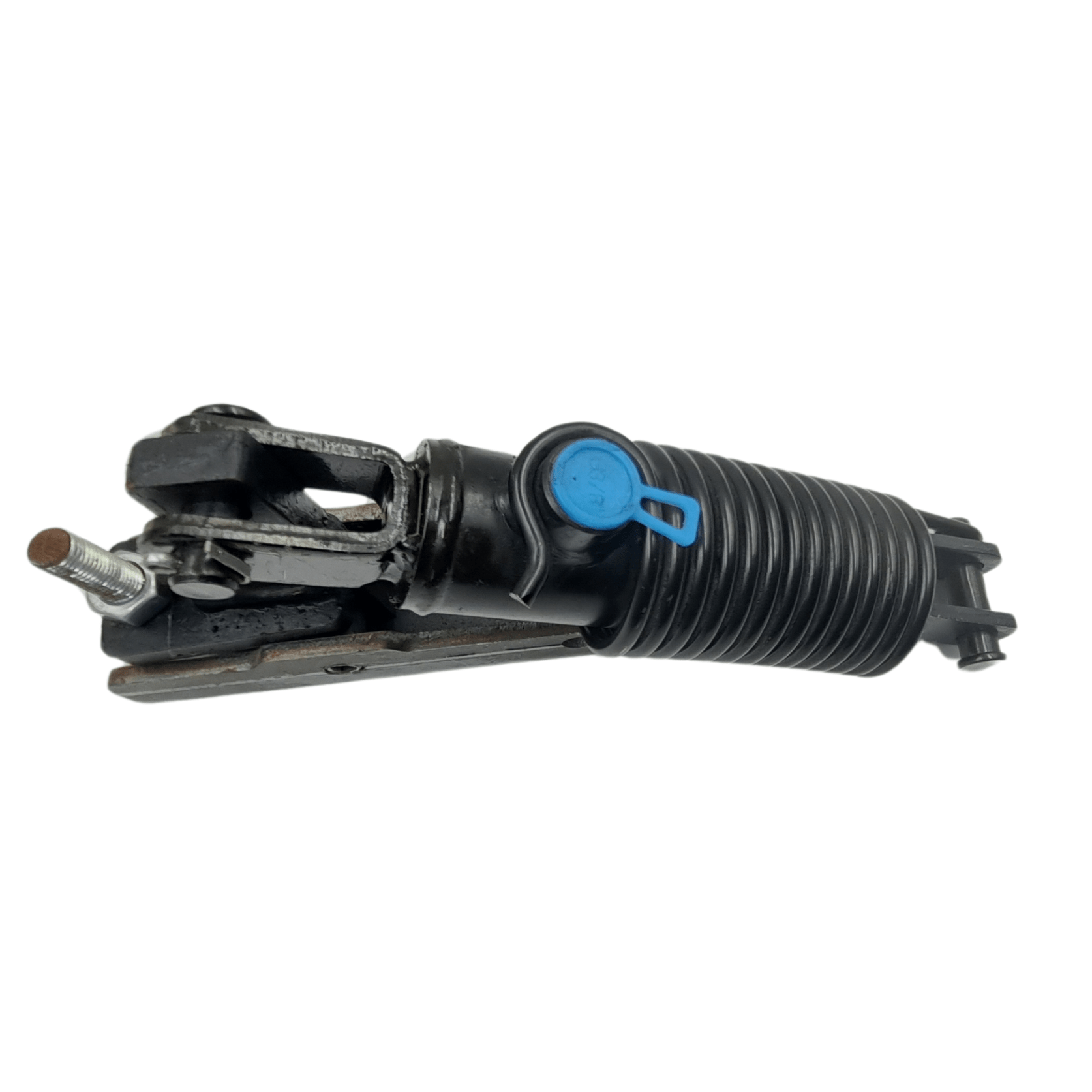

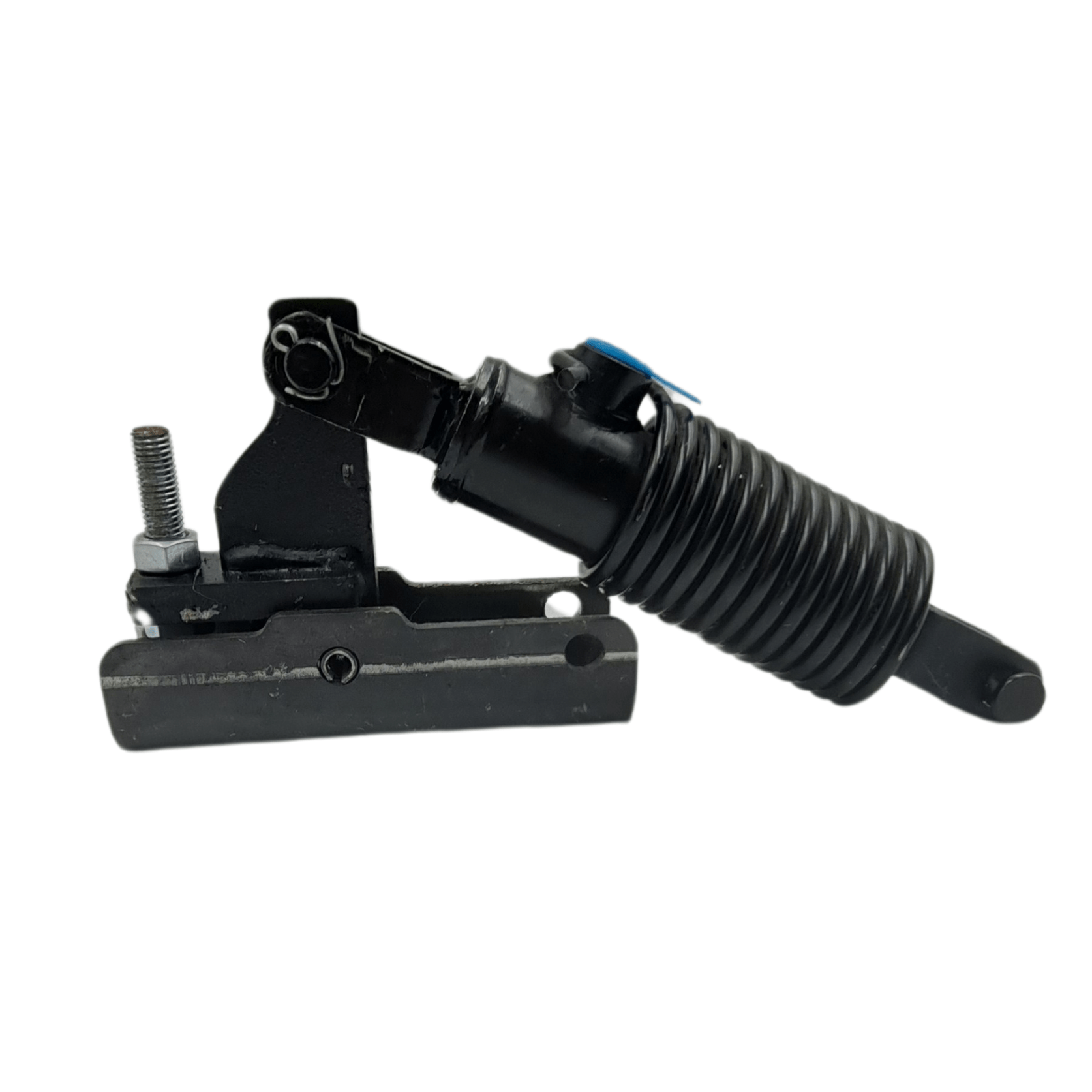

Hydraulic Cylinder Assembly

Hydraulic Cylinder Assembly

• The cylinder should be parallel ±5°
  to the base plate when connected to
  the brake lever of the axle in order to
  achieve the correct spring preload.
• Cylinder ram ø30
• Maximum allowed working pressure 200 bar
